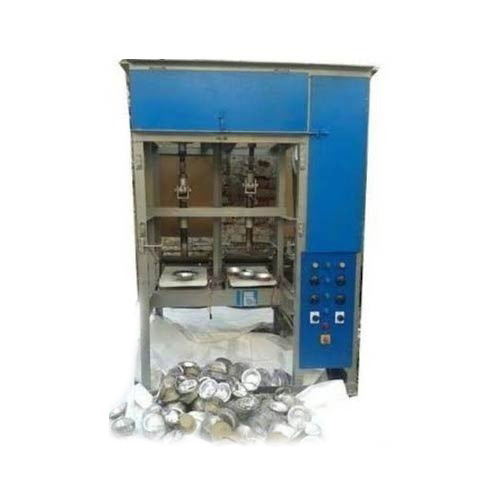

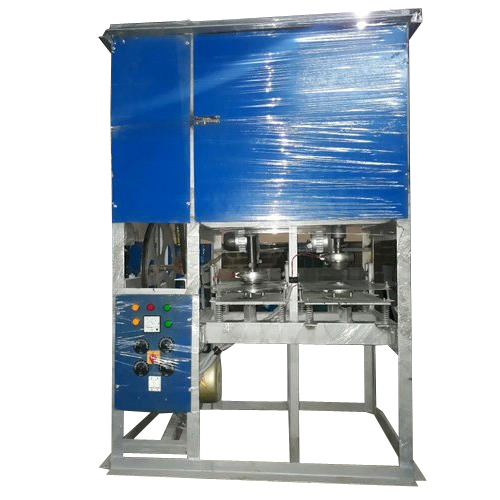

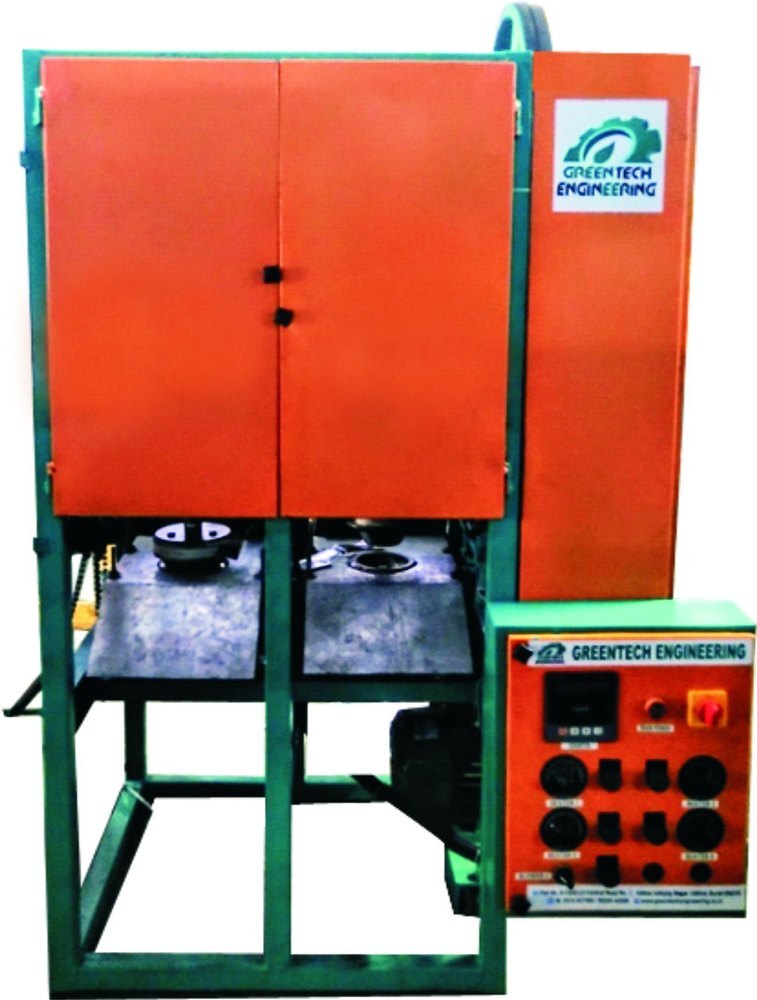

Double Die Paper Dona Making Machine

Double Die Paper Dona Making Machine Specification

Grade
Industrial

Type
Double Die Semi Automatic

Material
Mild Steel (MS)

Capacity
24000 pieces/shift (8 hrs)

Computerized
No

Control System
Electrical Panel

Cutting Speed
2000-2500 pieces/hour

Cutting Size
4 to 14 inches

Cutting Thickness
80 to 180 GSM

Voltage
220V / 50Hz

Power
1 HP motor

Weight (kg)
300 kg (approx)

Dimension (L*W*H)
1200 x 1000 x 1700 mm

Color
Blue / Silver

Automation Grade
Semi Automatic

Number of Dies
2

Operation Mode
Electric

Operator Required
Single Person

Production Per Stroke
2 pieces

Die Material
Aluminum

Lubrication System
Manual

Installation Required
Yes

Packaging Type
Standard Export Packing

Application
Making Paper Dona, Plates, Bowls

Noise Level
Low

Motor Type
Copper Winding

Max Plate Size
14 inches

Paper Type Supported
Laminated/Non-Laminated Paper, Silver Paper Sheets

Double Die Paper Dona Making Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Day

Delivery Time
2 Days

About Double Die Paper Dona Making Machine

We are very popular in the industry owing to our outstanding collection of Double Die Paper Dona Making Machines. They are specifically manufactured to perform the dona making process in the most efficient and effective manner. The machines have a hard boiled configuration that helps in their long lasting performance. They can be installed effortlessly and does not take much space. The Double Die Paper Dona Making Machines deserve clients trust as they are in accordance to the industrial quality standards.

Efficient Semi-Automatic Double Die Production

Operate with ease using the semi-automatic double die system, which produces two donas per stroke. With a maximum plate size of 14 inches and a robust cutting speed, this machine is ideal for businesses looking to maximize productivity with minimal manpower.

Versatile Paper Support and Low Noise Operation

Handle a variety of raw materials, including laminated and non-laminated papers as well as silver paper sheets. Featuring a copper winding motor and thoughtfully designed structure, the machine operates quietly, ensuring a comfortable working environment.

High Capacity and Industrial Build Quality

Constructed from high-grade mild steel and equipped with a manual lubrication system, this machine can yield up to 24,000 pieces per 8-hour shift. Its built for durability and consistent output, making it a reliable choice for growing manufacturing units and exporters.

FAQs of Double Die Paper Dona Making Machine:

Q: How is the Double Die Paper Dona Making Machine installed?

A: Installation is required for this machine and is typically performed at the site by a technician or operator, following standard setup procedures. The machine comes with standard export packaging, ensuring safe transport, and clear installation guidelines for effective deployment.

Q: What types of paper materials can the machine process?

A: The machine supports multiple paper types, including laminated and non-laminated papers, as well as silver paper sheets, with suitable thickness ranging from 80 to 180 GSM and cutting sizes between 4 to 14 inches.

Q: When should I use the manual lubrication system?

A: Regular manual lubrication is necessary for smooth operation and to prevent mechanical wear. Its recommended to lubricate all moving parts before daily use or at the start of each shift.

Q: Where can this machine be used effectively?

A: This machine is ideal for small to large-scale manufacturing units, especially in industries involved in the production and export of disposable donas, plates, and bowls. Its robust design suits industrial environments across India.

Q: What is the production process using this machine?

A: The process involves feeding compatible paper sheets, setting die sizes (from 4 to 14 inches), and operating the machine via an electrical control panel. Each stroke produces two donas or plates, with one person efficiently operating the system.

Q: How does the machine benefit my business?

A: With a high output rate (up to 2,500 pieces/hour), low noise, and minimal operator requirements, the machine increases productivity while reducing labor costs. Its durable construction and easy maintenance further enhance operational efficiency.

Q: What power supply does the machine require for operation?

A: The machine operates on a 220V / 50Hz power supply and requires a 1 HP motor with copper winding, making it energy efficient and compatible with standard industrial electrical setups.
